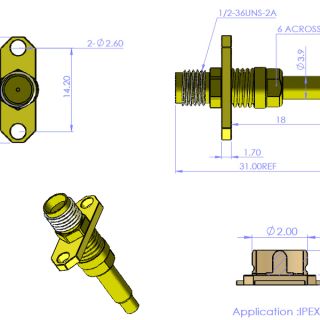

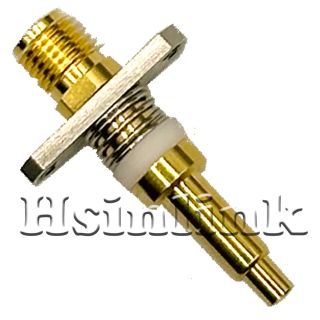

HS-0307｜Test Probe For IPEX1 With SMAF (8G)

For IPEX1 (MHF1)

IPEX1(MHF1) connector is commonly used to link PCB headers with antennas. With a compact footprint, it’s deal for micro-PCBs. MHF1 connector is widely used in WiFi and LTE devices, laptops and mid-sized IoT products like in-vehicle, smart home appliances and wearable devices.

Auto-Alignment Function

HS-0307 is designed with flange and mounting holes, the test probe can be securely fastened to the test fixture. It features a self-alignment mechanism, this compensates ±0.03mm alignment during pressing down which ensures precise and stable contact with the test point, reduces contact error and enhances overall measurement accuracy.
Pairs with HS-SMAM(RA) To SMAF(2H) With 1.37 Cable 15cm (8G) (including connectors, total length 15cm) to reduce errors caused by test probe and cable vibration and mechanical wobbling while testing.
