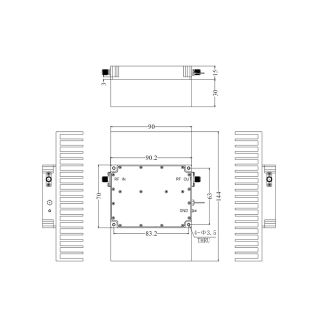

HS-Gain:35dB Psat:33dBm Power Amplifier With SMAF (0.5-8G)_with Heatsink
Product Specifications
PRODUCT SPECIFICATIONS
Frequency Range (Hz)
0.5~8G
VSWR (dB Max.)
1.5 (Typ.), 2.0 (Max.)
Gain (dB Min.)
Gain Flatness (dB Max.)
±3
DC Voltage (V DC)
+28 V DC (Typ.) , +30 V DC (Max.)
Current (mA)
Connector
SMA Female
