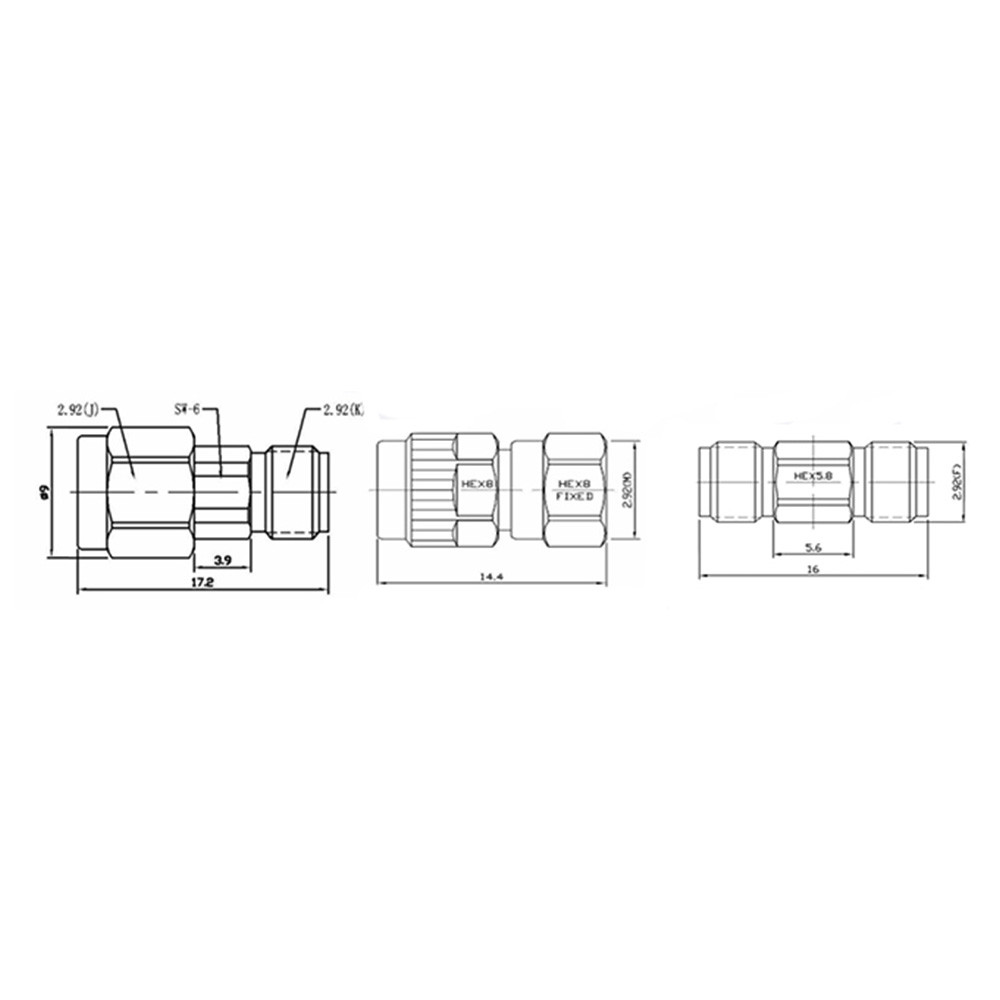

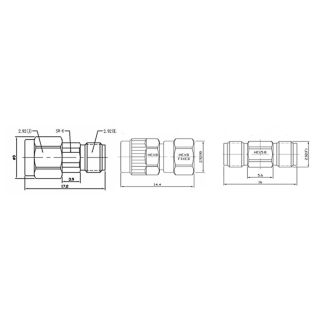

HS-10dB 2W Fixed Attenuator With 2.92mm Type (40G)
Hsinlink provides a full range of fixed attenuators, including SMA, N Type and 2.92mmType connectors to meet various attenuation requirements.
Product Specifications
PRODUCT SPECIFICATIONS
Frequency Range (Hz)
DC~40G
VSWR (Max.)
1.3
Impedance (Ω)
50
Power (W)
2W
Attenuation Value (dB)
1,3,5,6,10,15,20,30,40dB
Attenuation Accuracy
±0.6dB (1~20dB)
±0.8dB (30dB)
±1.0dB (40dB)
Connector 1
2.92mm Male
Connector 2
2.92mm Female
