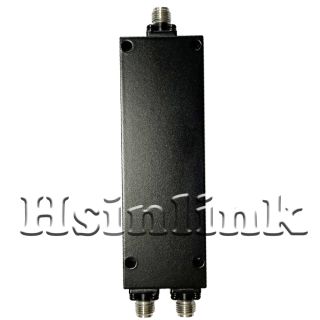

HS-1V2 Divider With 2.92mmF (1-40G)
Hsinlink provides 2 to 16 ways power dividers supporting connector types including SMA, F, N, BNC, 2.4mm and 2.92mm. With a frequency range covering DC to 40GHz, our products deliver stable and reliable signal distribution performance.
Product Specifications
PRODUCT SPECIFICATIONS
Frequency Range (Hz)
1 ~ 40G
VSWR (Max.)
Input: 1.8 (Max.)
Output: 1.6 (Max.)
Impedance (Ω)
50
Insertion Loss (dB)
1.8dB
(Above Theoretical Loss:3.0dB)
Isolation (dB)
16
Amplitude Balance (dB)
±0.4
Phase Balance (°)
±5
Power (W)
20W (Forward)
1W (Reverse)
Connector
2.92mm Female
Way
2
