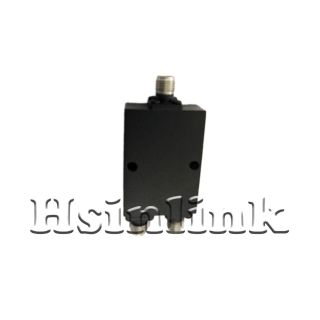

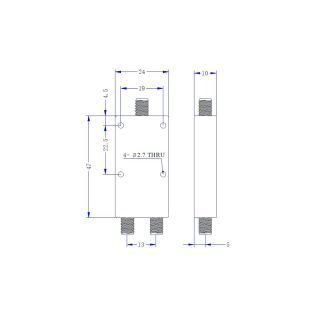

HS-1V2 Divider With SMAF (2-18G)
Hsinlink provides 2 to 16 ways power dividers supporting connector types including SMA, F, N, BNC, 2.4mm and 2.92mm. With a frequency range covering DC to 40GHz, our products deliver stable and reliable signal distribution performance.
Product Specifications
PRODUCT SPECIFICATIONS
Frequency Range (Hz)
2~18G
VSWR (Max.)
Input : 1.35 (Max.), Output : 1.30 (Max.)
Impedance (Ω)
50
Insertion Loss (dB)
1.0dB (Max.) (Above Theoretical Loss:3.0dB)
Isolation (dB)
18
Amplitude Balance (dB)
±0.3
Phase Balance (°)
±4
Power (W)
20W (Forward), 1W (Reverse)
Connector
SMA Female
Way
2
