Automotive Electronics Fixture
Our Design
Automotive electronic testing requires highly stable electrical measurements. During the testing process, it is essential to simulate tire pressure conditions while providing both external electromagnetic interference isolation and precise airtight control of the testing environment, to ensure the accuracy and consistency of the measurement data.
Fixture Requirements
-
High-performance electromagnetic shielding (433MHz , 315MHz RF Isolation)
-
Airtight structure chamber for controlled testing environment
-
ICT Probe based contact testing structure
-
Supports high repeatable and stable measurements
-
Compatible with customized test fixtures and automated robotic arms for production lines.
Hsinlink provides customized RF shielding box integration and design services, combining mechanical engineering, advanced material application and testing architecture optimization to meet customers’ stringent requirements.
Design Highlights
- High-Performance Shielding Design: Utilizes multi-layer RF absorbing materials and conductive sealing to effectively suppress external electromagnetic interference.
- Optimized Airtight Enclosure: Features precision-machined mating surfaces and advanced seals to ensure a stable and consistent testing environment.

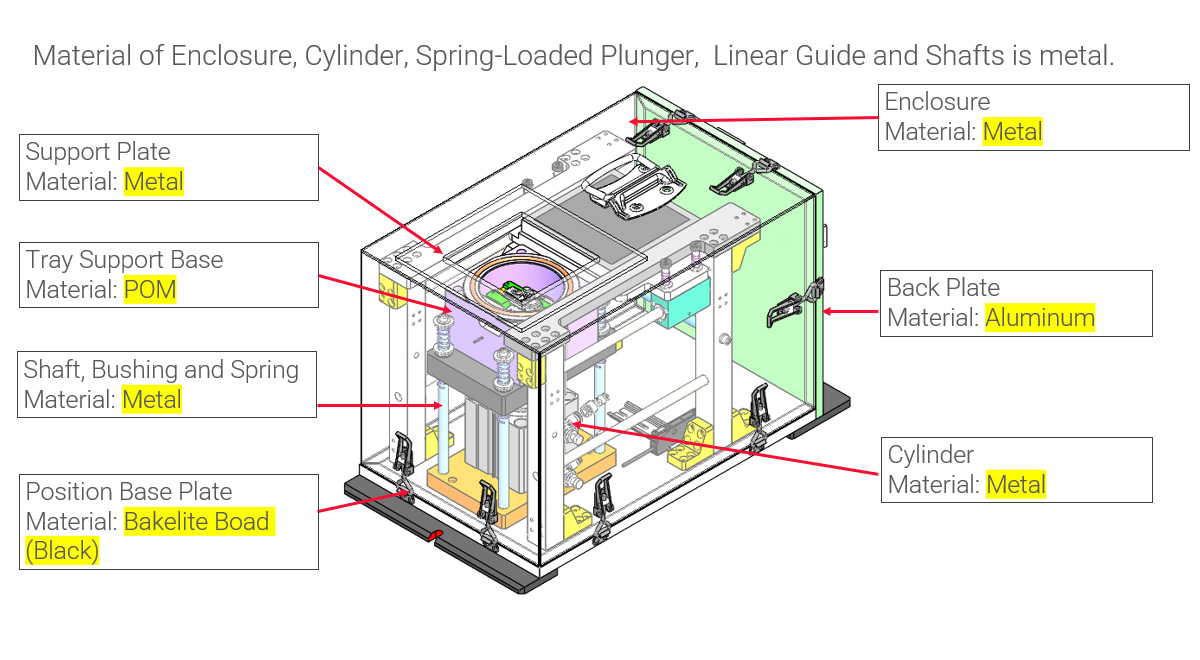

- Customized Enclosure and Internal Fixture Design: Engineered to seamlessly integrate with automated product loading and unloading.
- Probe-Based Testing Integration: Precisely aligns test probes with contact points to improve overall testing effeciency.
- Modular Design for Easy Operation and Maintenance: Enables quick fixture replacement and simplifies routine maintenance.

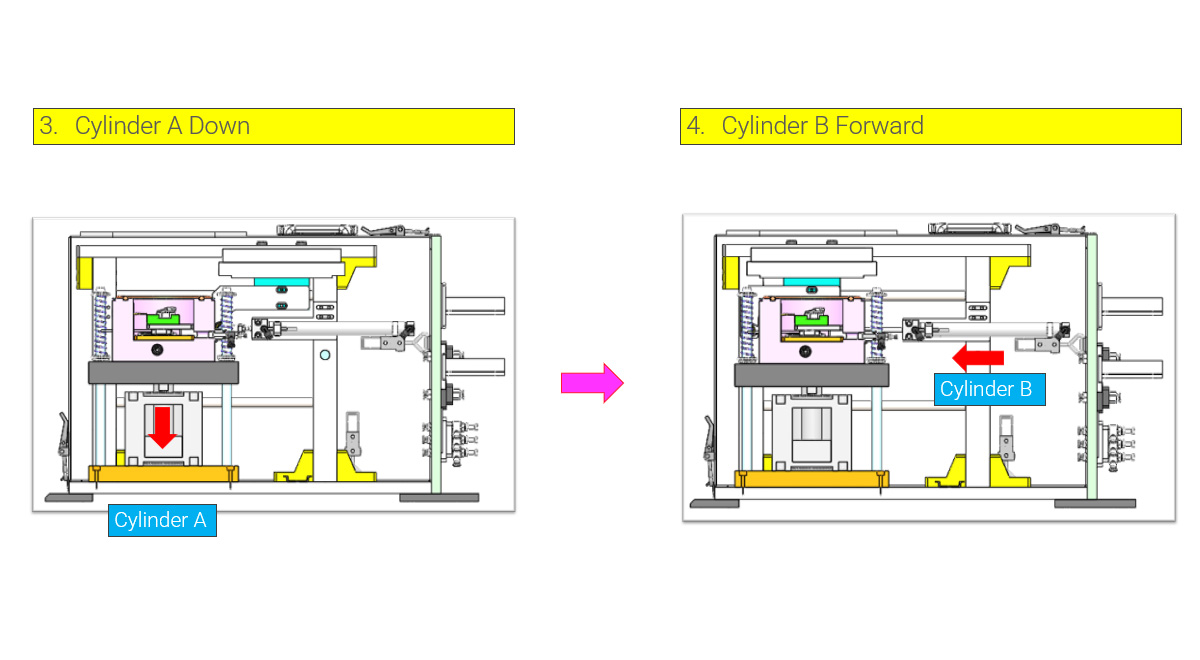

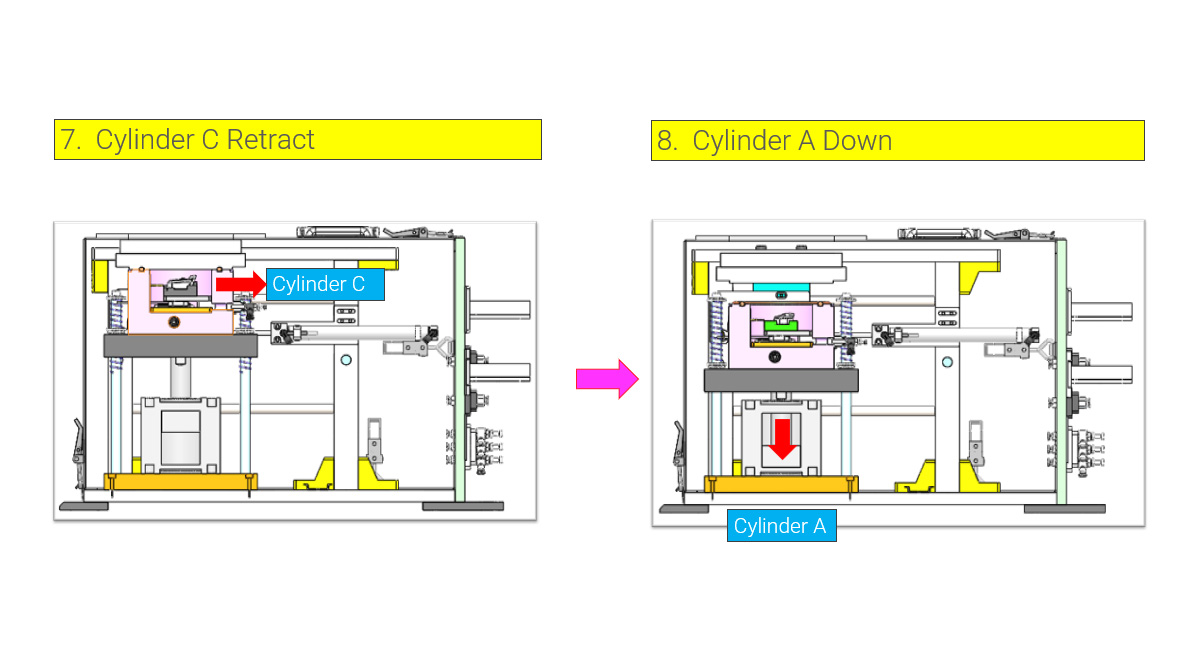

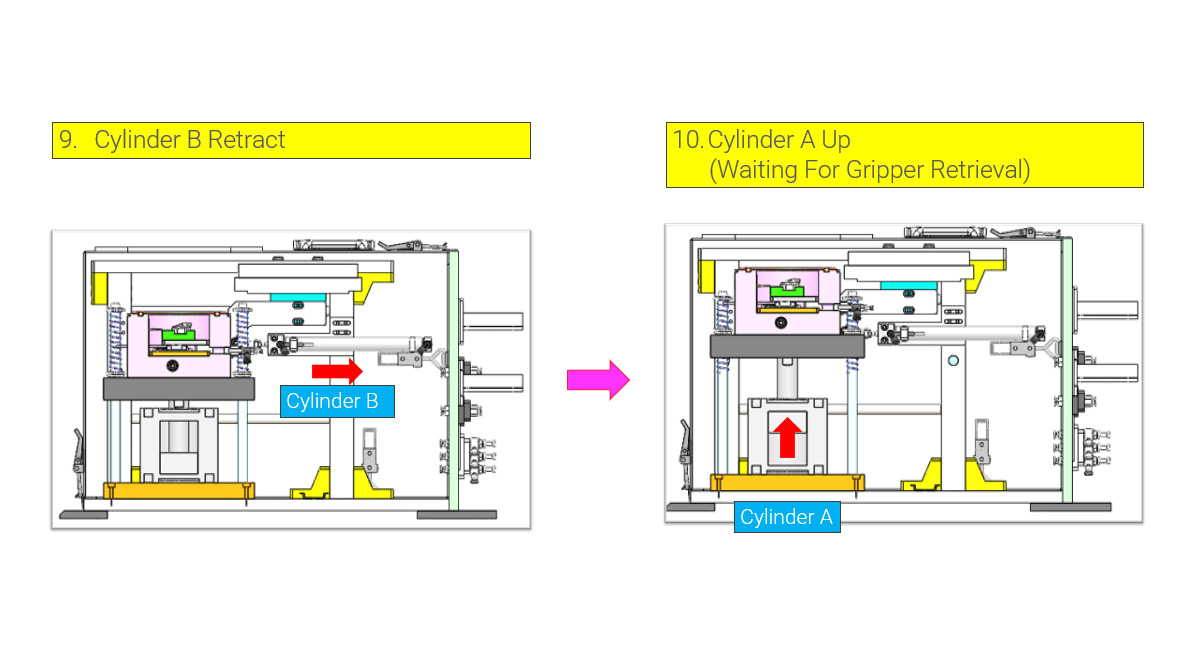

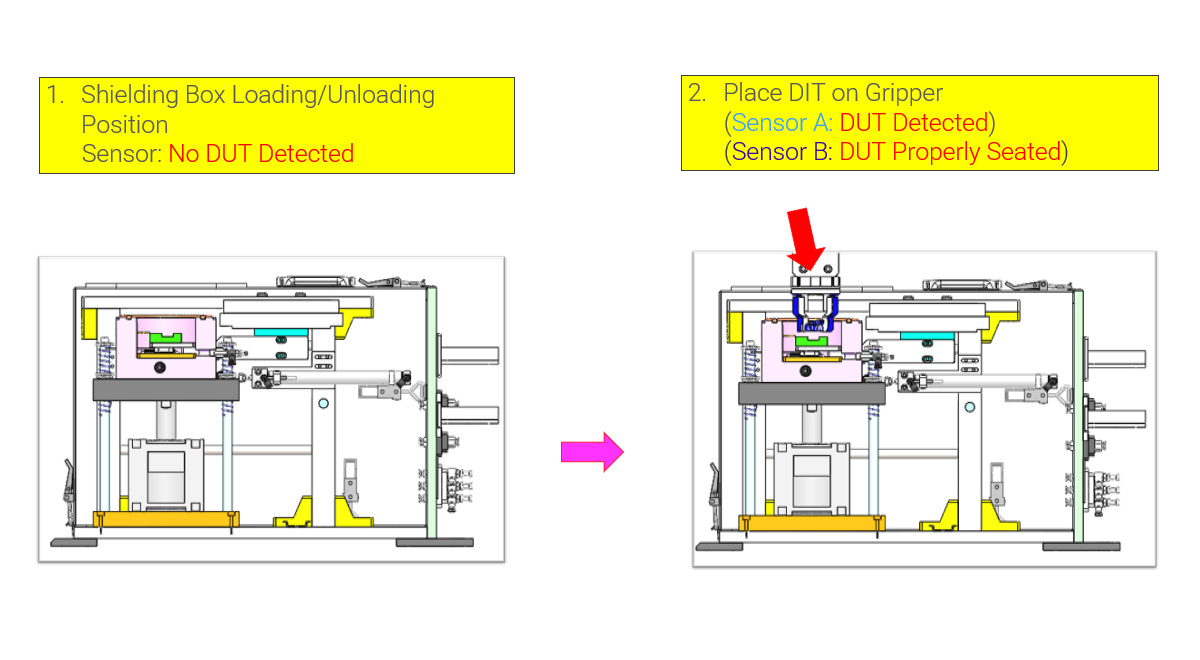

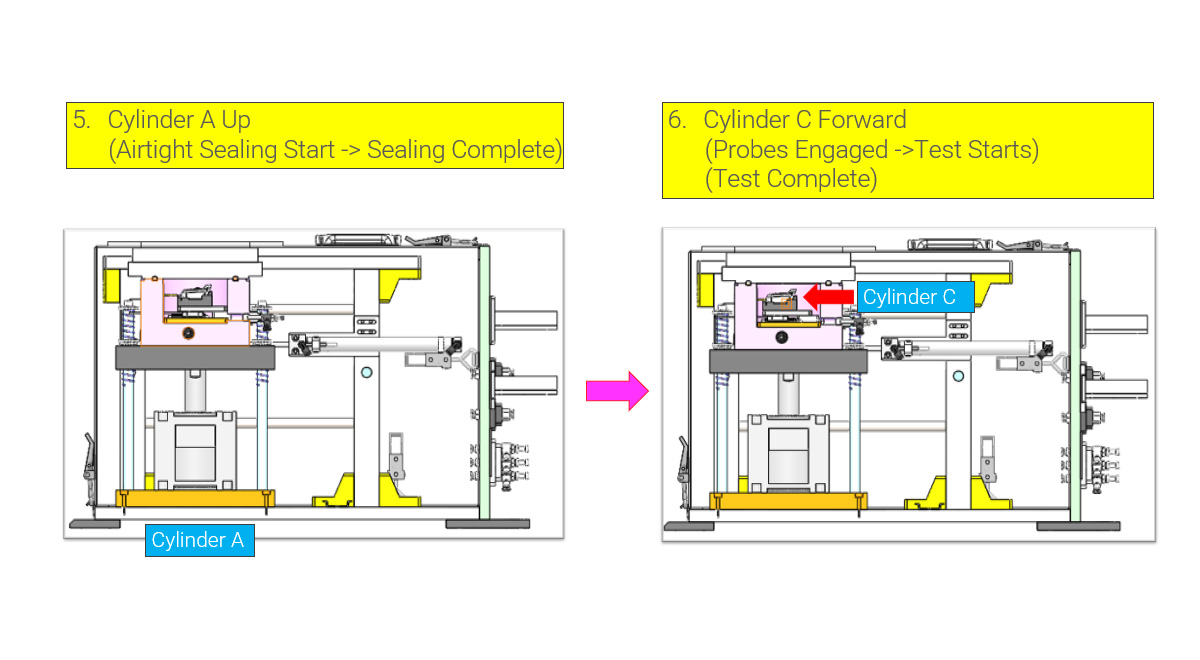

Fixture Opertation Introduction
