Pneumatic RF SoC Module Test Fixture

Pneumatic RF SoC Module Test Fixture

DUt for the shielding box is RF module, it is designed with fixed socket and changable test board for users to swith to another production line easily.

Socket paired with test probe HS-0306

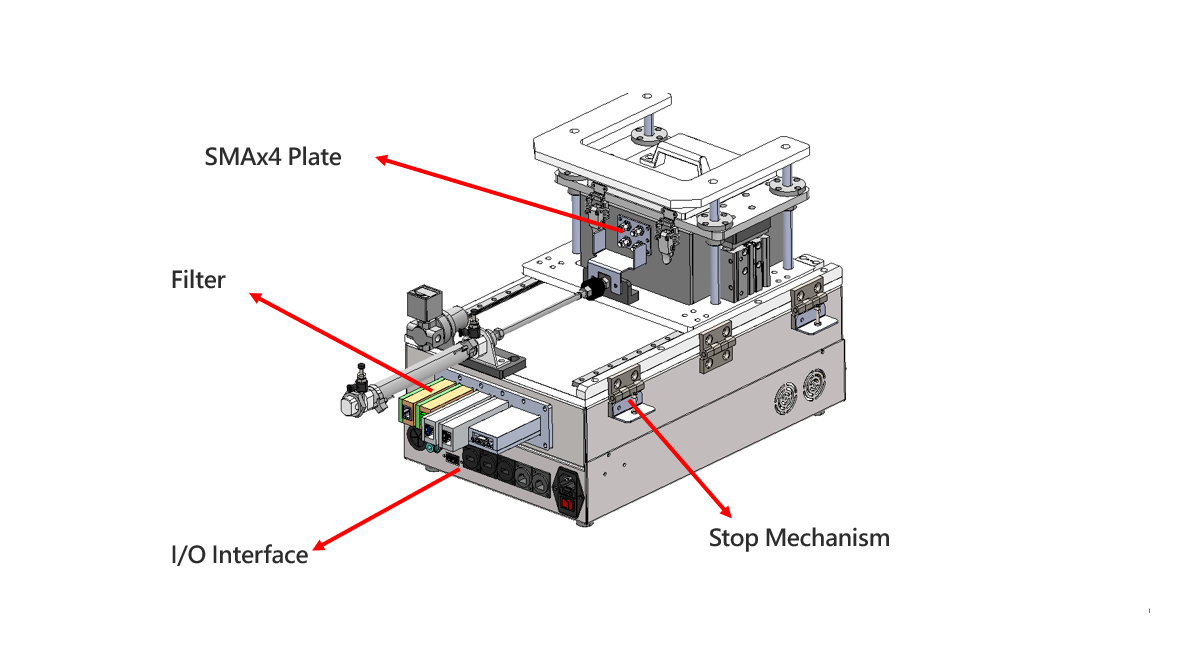

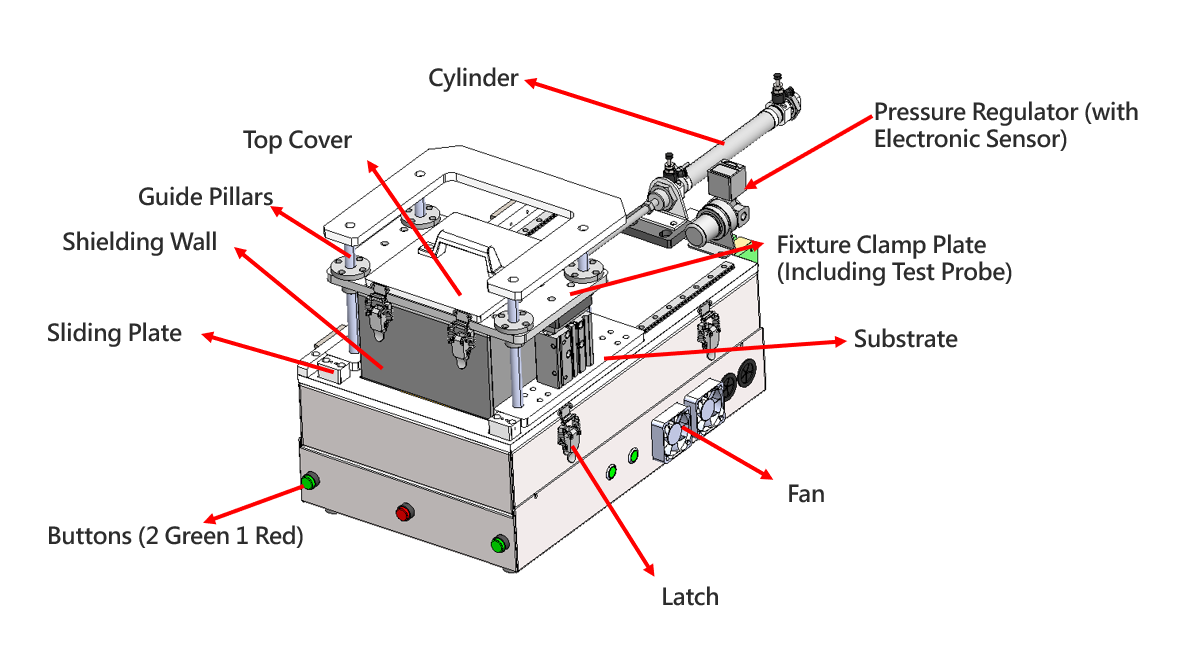

Appearance and Structure

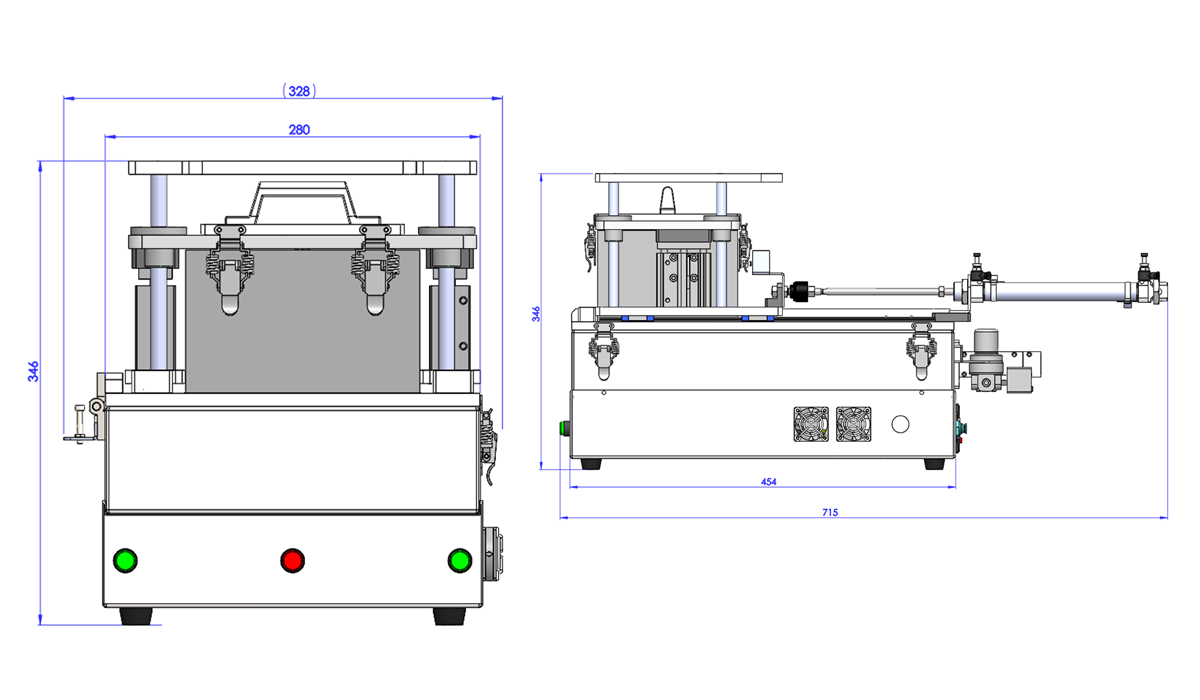

Test Fixture Size

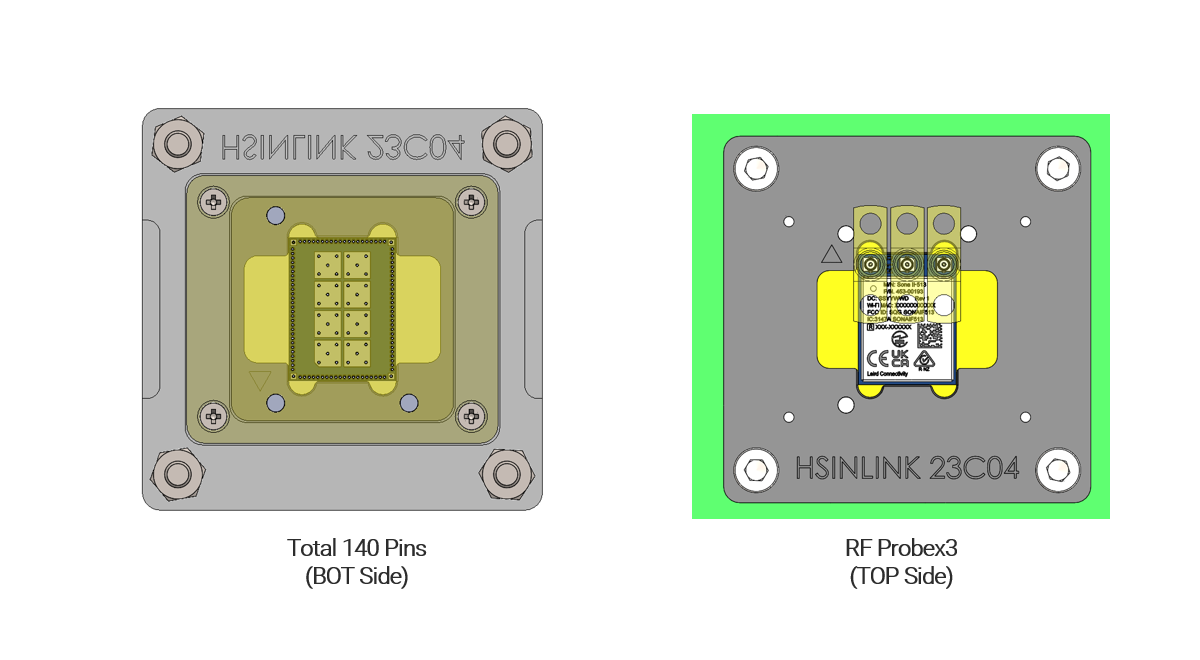

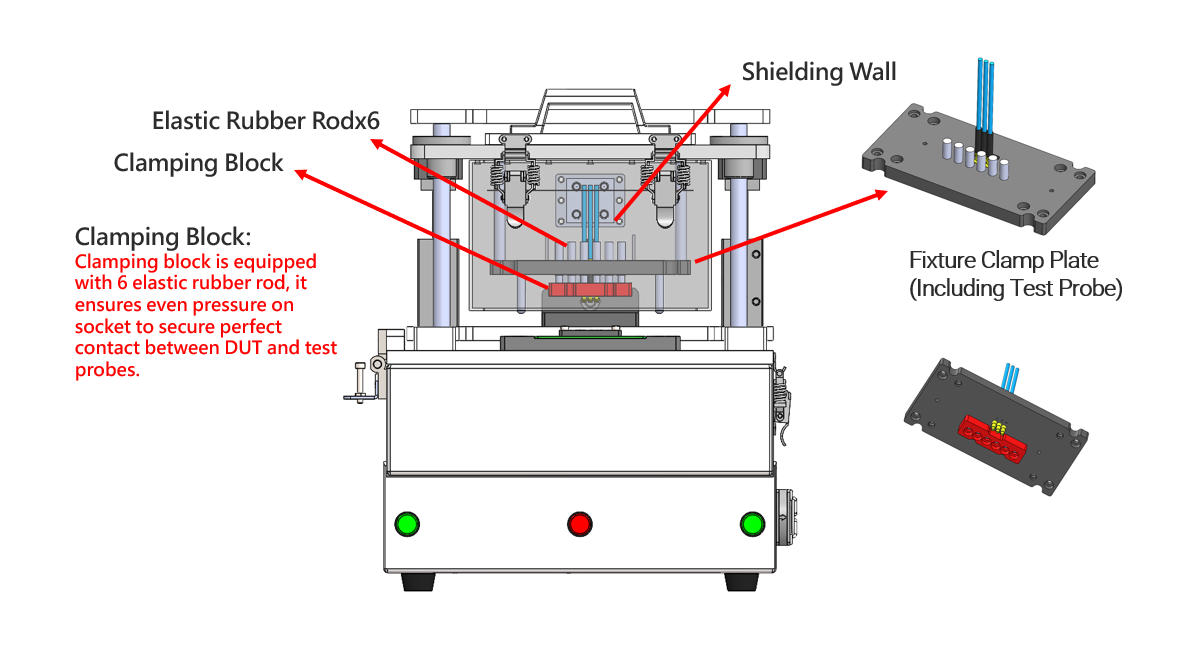

Test Fixture Paired With Socket

Test Fixture Actuation Mechanism

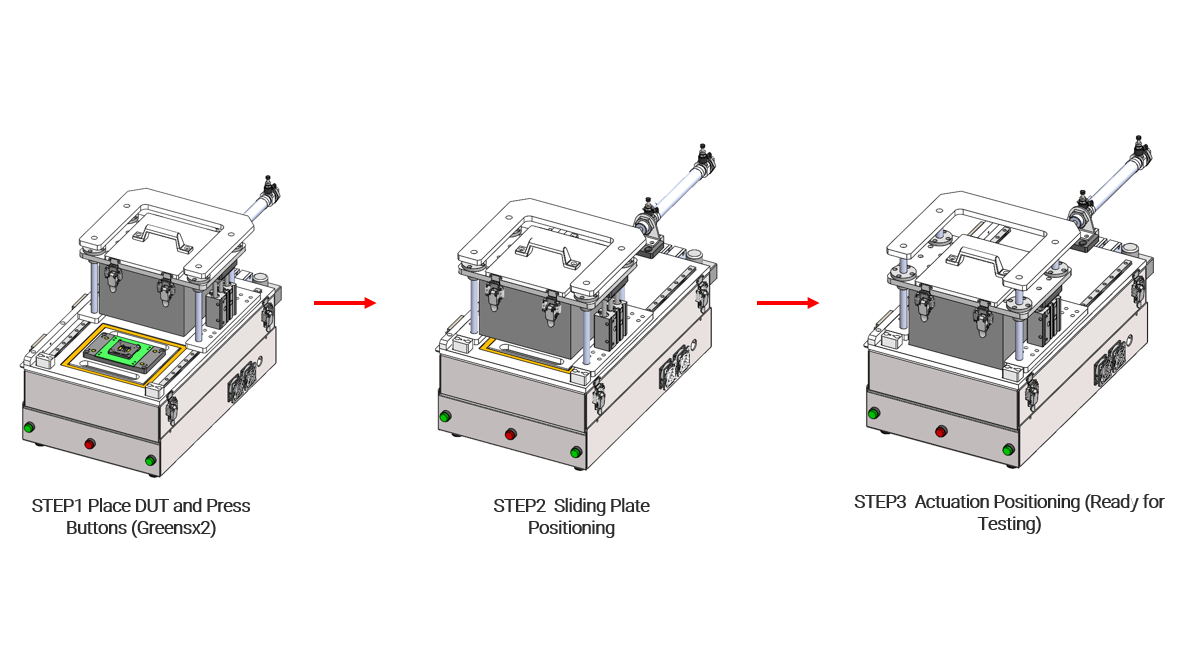

Test Fixture Operation Method
