RF Bluetooth Module Testing Fixture

Our Design

The fixture is designed for RF Bluetooth module manufacturer for a stable and highly repeatable test environment for both product development and production validation. The solution minimizes RF signal interference, poor contact repeatability and fragmented test procedures, it ensures full compliance with wireless specifications,significantly enhancing test efficiency and data reliabiltiy.

Fixture Requirements

• Develope high-reliability test socket and high-frequency probe verification fixture.
• Integrated with pneumatic RF shielding box.
• Incorporate panel antenna for wireless testing.
• Paired with industrial PC for test execution and data processing.
• Provides a stable and low interference RF testing environment.
• Improve testing efficiency and consistency.

Hsinlink provides customized RF shielding box integration and design services, combining mechanical engineering, advanced material application and testing architecture optimization to meet customers’ stringent requirements.

Design Highlights

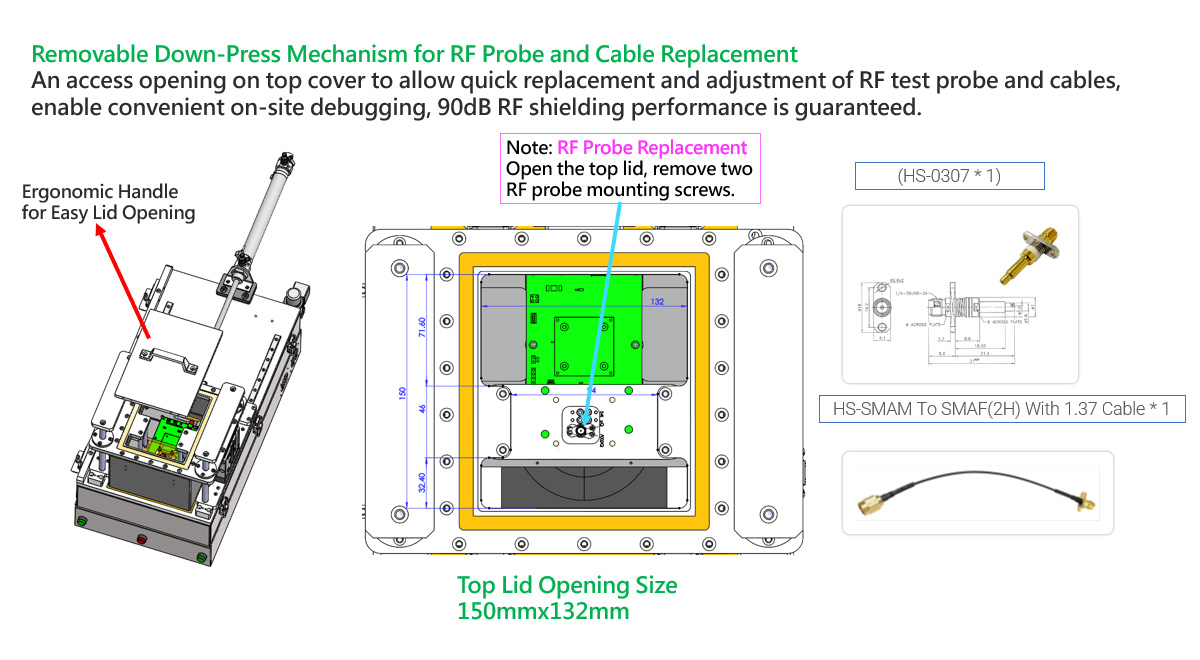

• Socket & Fixture: highly reliable test socket and verficication fixture are designed for bluetooth module. Integrated with IPEX1 connector, HS-0307 test probe and positioning structure, to ensure stable electrical contact and signal integrity, to build overall testing accuracy.

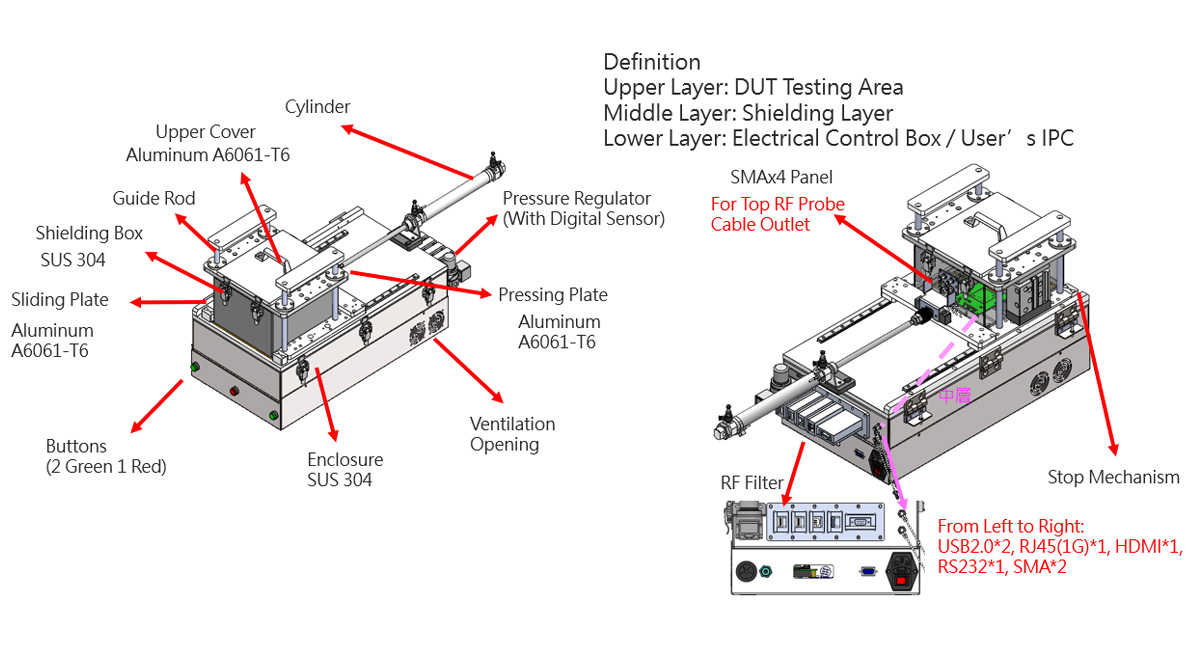

• Pneumatic Shielding Box: pneumatic shielding box series fextures phneumatically actuated opening and closing machanism to improve test cycle time and operational consistency. Its high-performance shielding design provides a stable, low interference test environment.

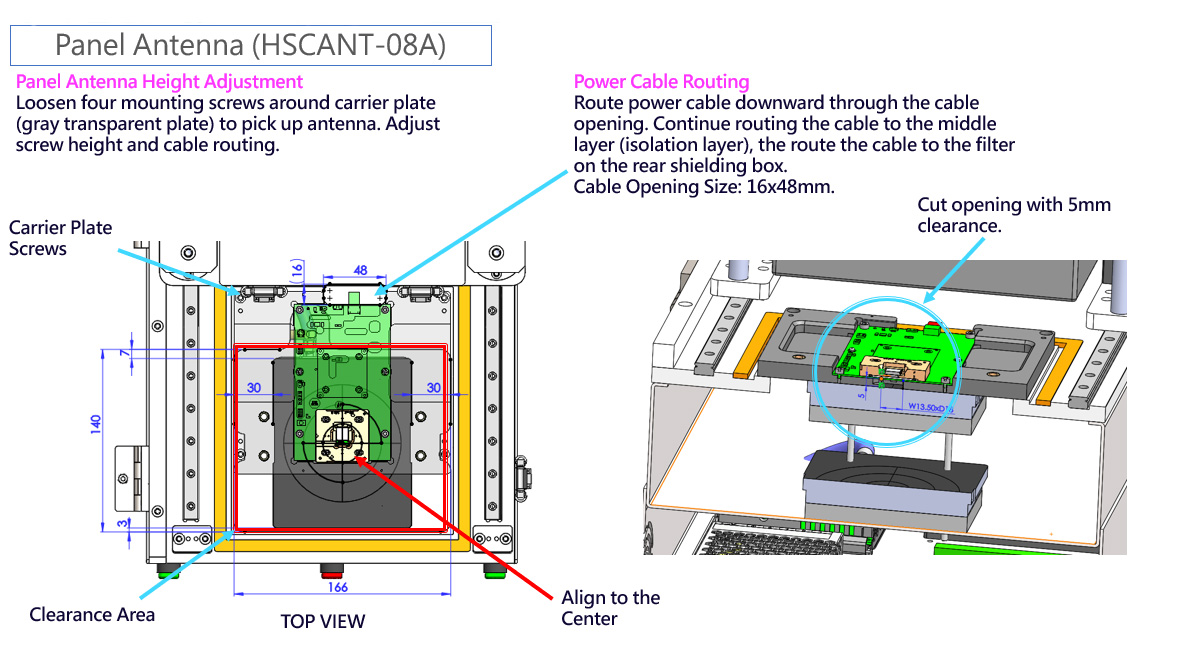

• Panel Antenna Test Integration: panel antenna is integrated inside the shielding box to perform wirelss signal transmission and reception testing, ensuring accurate and reliable communication performance validation.

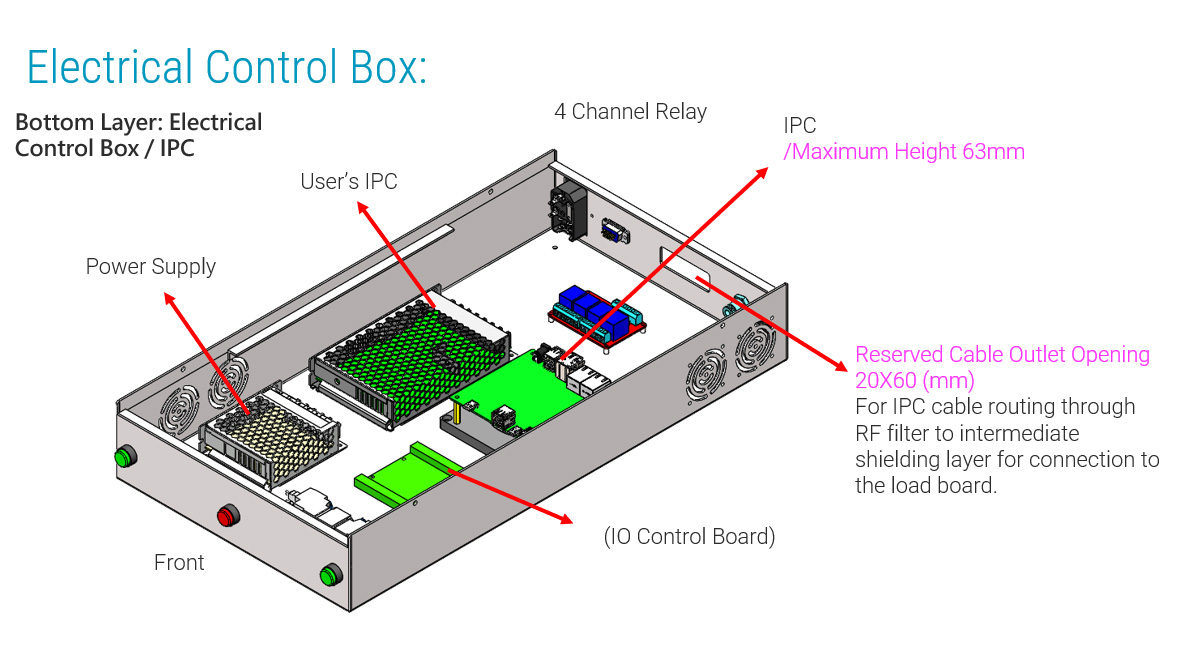

• IPC Control and Data Processing: combines IPC integration test control, data logging and analysis, improving testing automation, system stability and data processing efficiency.

• Integrated Test Platform Design: unifies test socket, antenna, shielding box and control system into a signle platform, simpified test workflow and improving test efficiency.

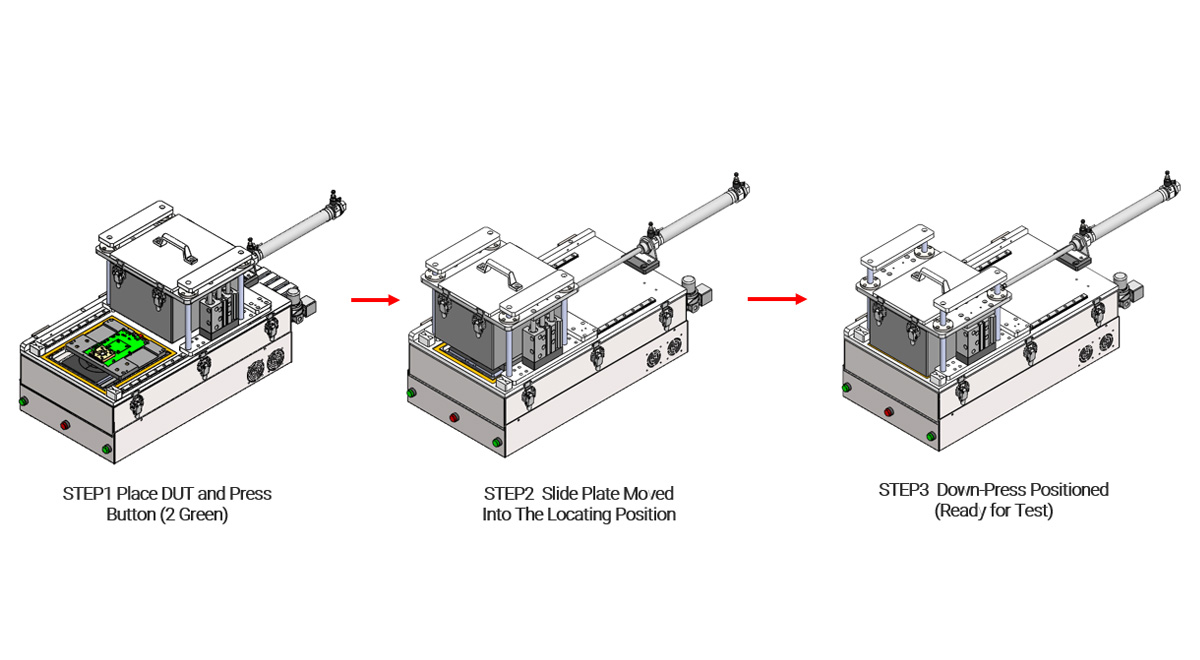

Fixture Operation Introduction
