mmWave Radar Sensor Testing Solution

Our Design

Designed for R&D, validation and production testing of mmWave radar sensor modules. The fixture establishes a highly stable and consistent test environment to ensure the accuracy of high-frequency signal measuremnet.

Fixture Requiements

• Developing high-precision mmWave test socket modules
• Integrating pneumatic flip-top RF shielding boxes
• Providing a stable and low-interference mmWave testing environment
• Enhancing testing efficiency and operational consistency
• Supporting R&D validation and engineering testing

Hsinlink provides customized RF shielding box integration and design services, combining mechanical engineering, advanced material application and testing architecture optimization to meet customers’ stringent requirements.

Design Hightlights

• Pneumatic Flip-Top Design: Features pneumatic flip-top door that provides wide access opening and stable mechanical operation to improve operational efficiency and safety.

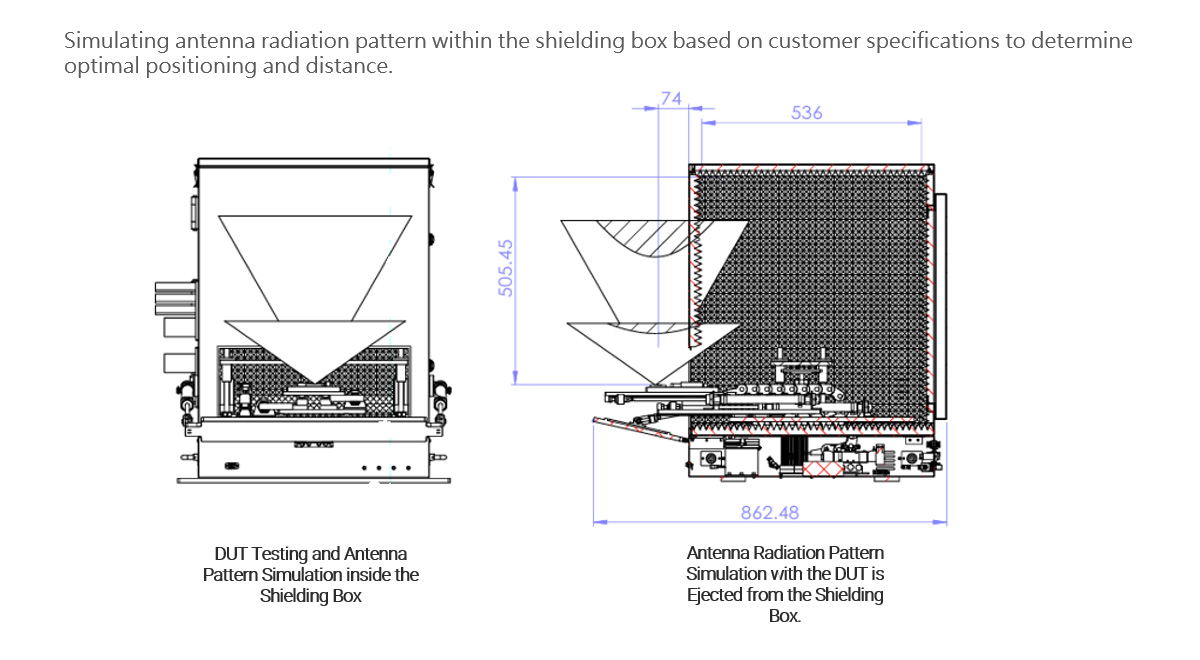

• Interference Reduction: Optimized shielding and RF absorbing materials to effecively reduce external signal interference and reflection effects, ensuring stable and reliable measurements.

• hIntergrated Testing: integrates test socket and shielding enclosure into an unified test platform, shortening signal path and reducing external connections to improve overall test consistency and repeatability.

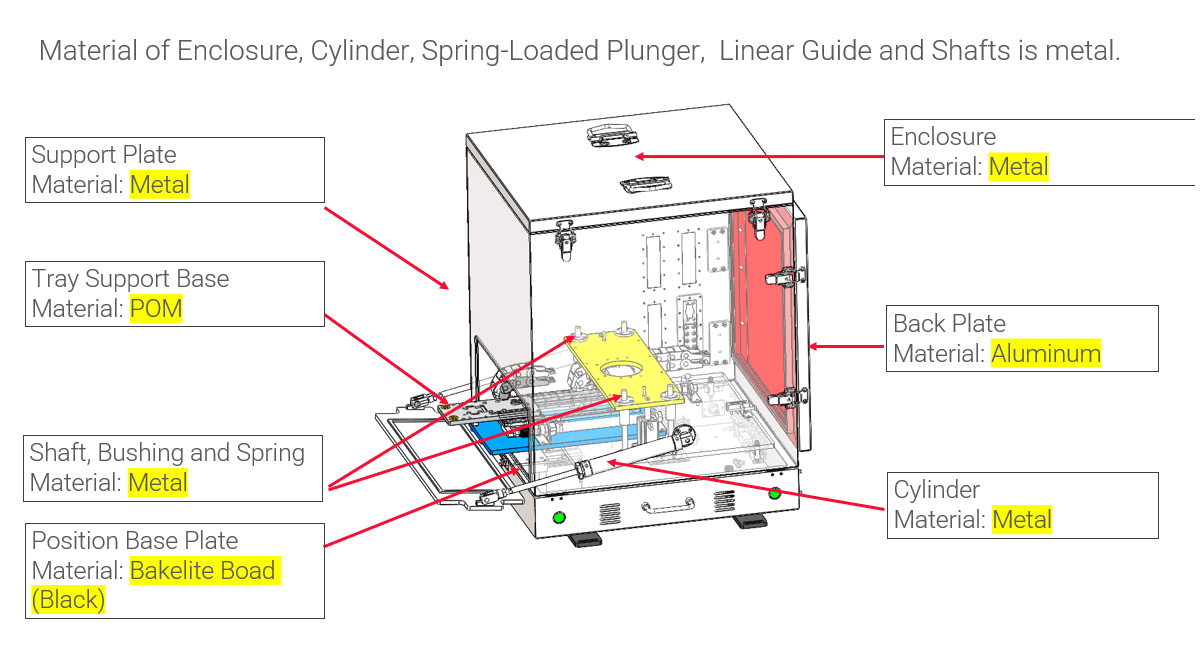

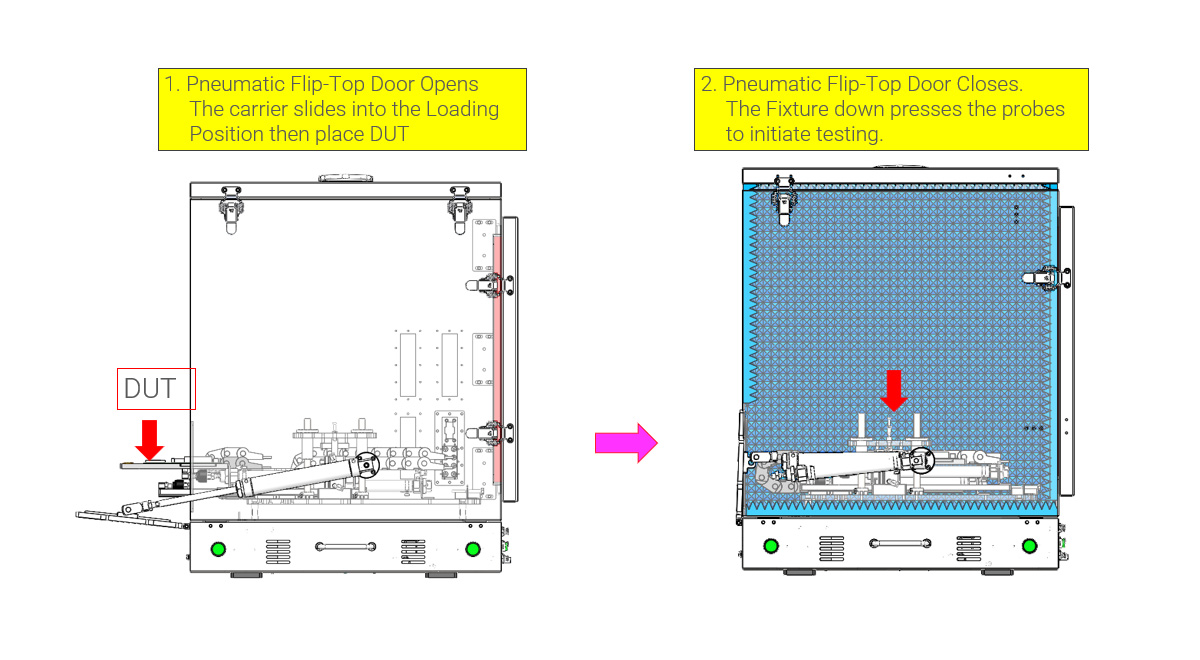

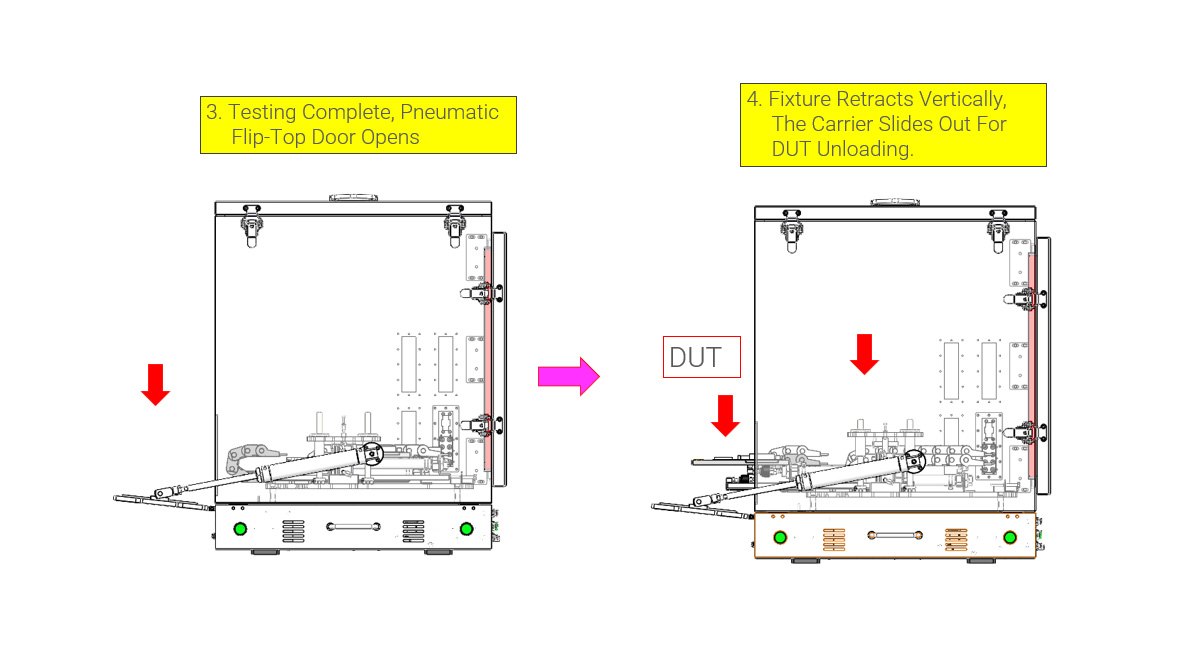

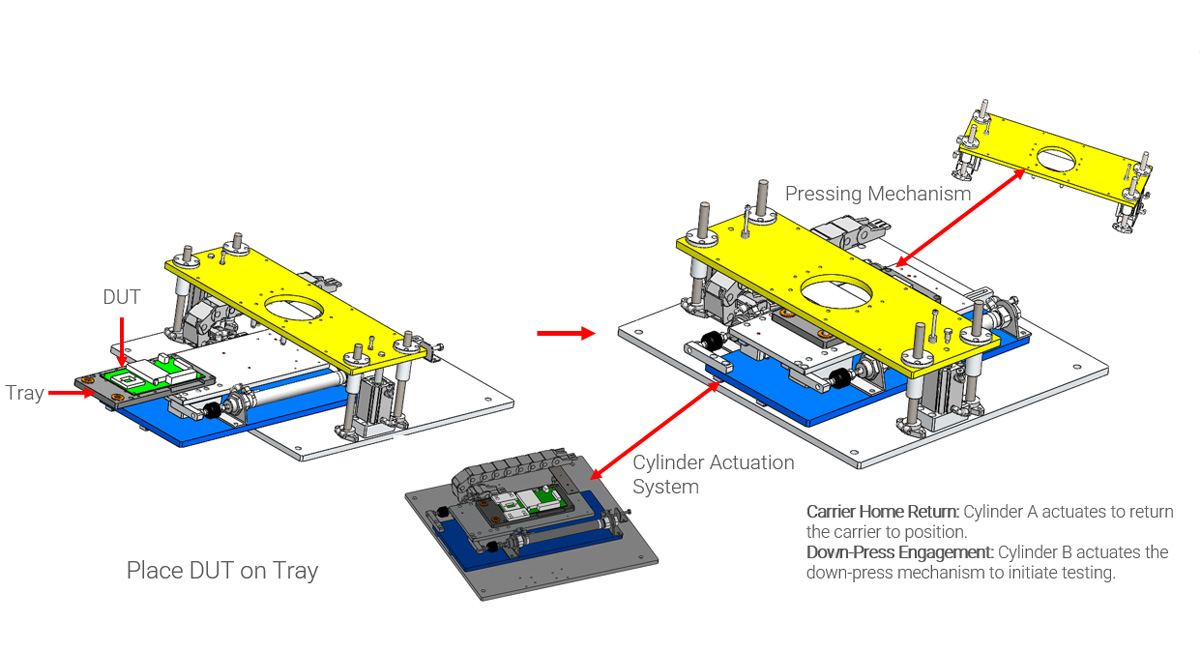

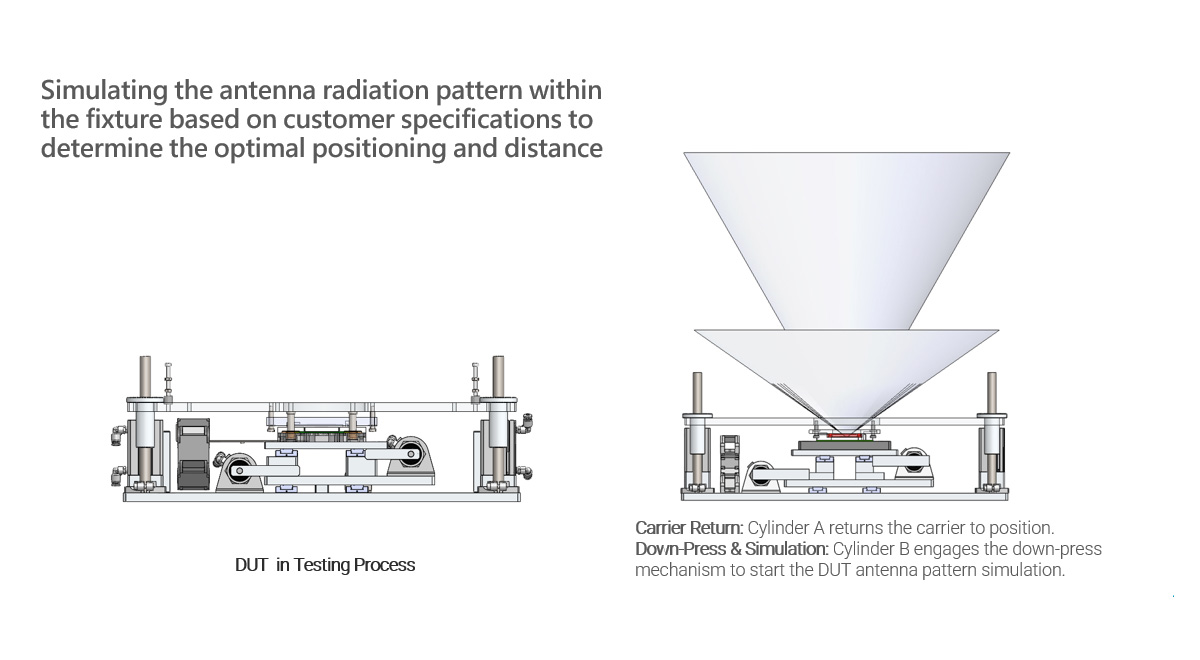

Fixture Operation Introduction
