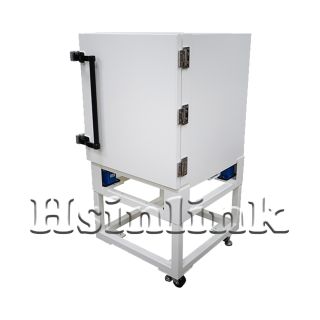

HSB707070-SS1 Manual Left-Opening Soundproof Box
Hsinlink provides manual side-opening and pneumatic clamshell soundproof box. Designed with full enclosure coverage and reserved ample workspace, the Soundproof Box utilize high-performance acoustic materials to suppress echoes and provide a stable testing environment, isolation level up to 40dB. We can also make shielding and soundproof box in single unit. To enhance mobility and efficiency, the enclosures can be equipped with custom stands and casters or integrated with aluminum extrusion workbench.
Product Specifications
PRODUCT SPECIFICATIONS
Frequency Range (Hz)
20~20K
Soundproof Effect (dB)
40
Exterior Dimension (mm)
766(W)*832(D)*1457(H)
Interior Dimension (mm)
700(W)*700(D)*820(H)
Available space
566(W)*630(D)*630(H)
Material
Sheet Stainless Steel
Open Mode
Manual Left-Opened
Filter Module (Qty.)
Max. Quantity of Filter Module
6
SMA Connector (Qty.)
Standard SMA Connector Quantity
0
Operating Temperature Range
Normal Temperature
Weight (Kg)
156
Color of Appearance
Ivory
